To Edit Hierarchy you need to open the Hierarchy Editor - ‘Edit Hierarchy’ page where you can update your Hierarchy

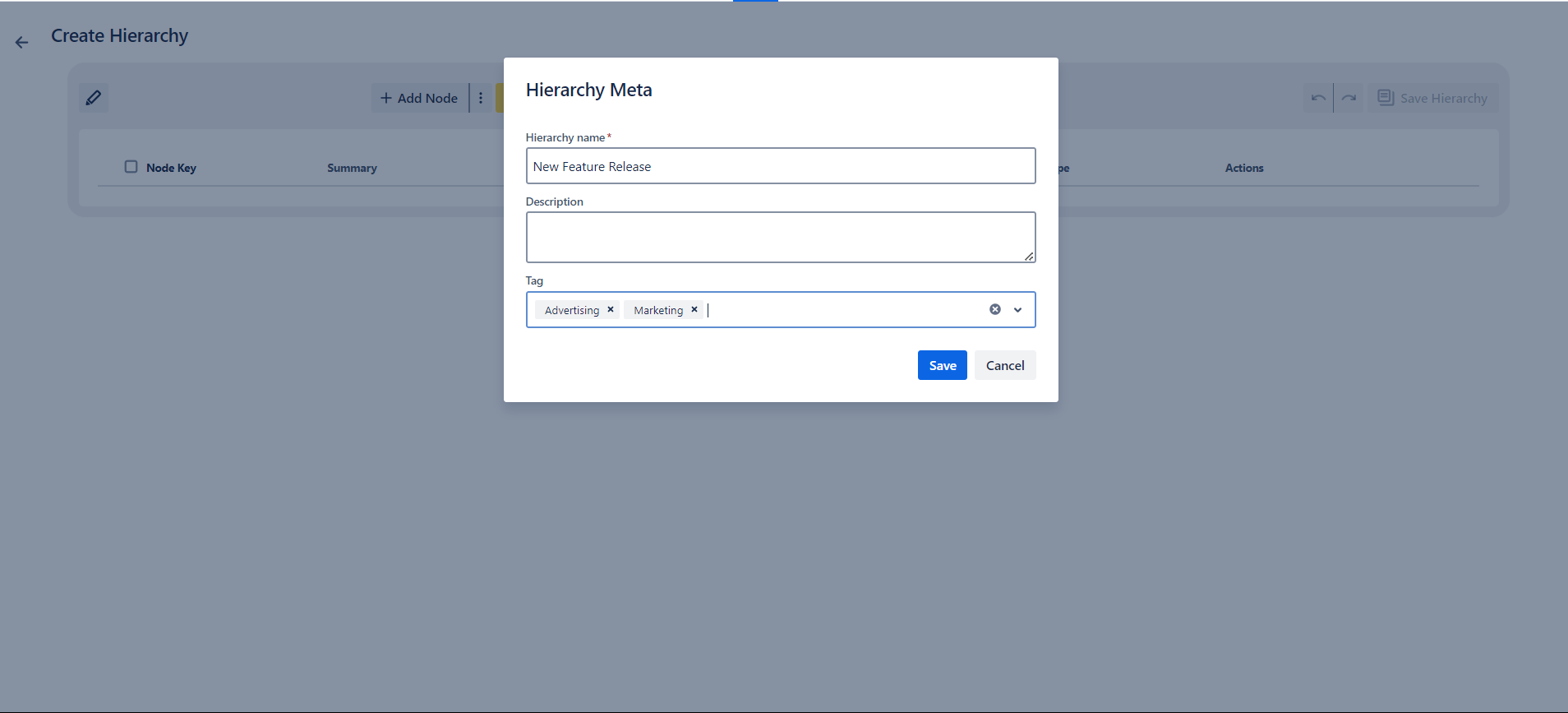

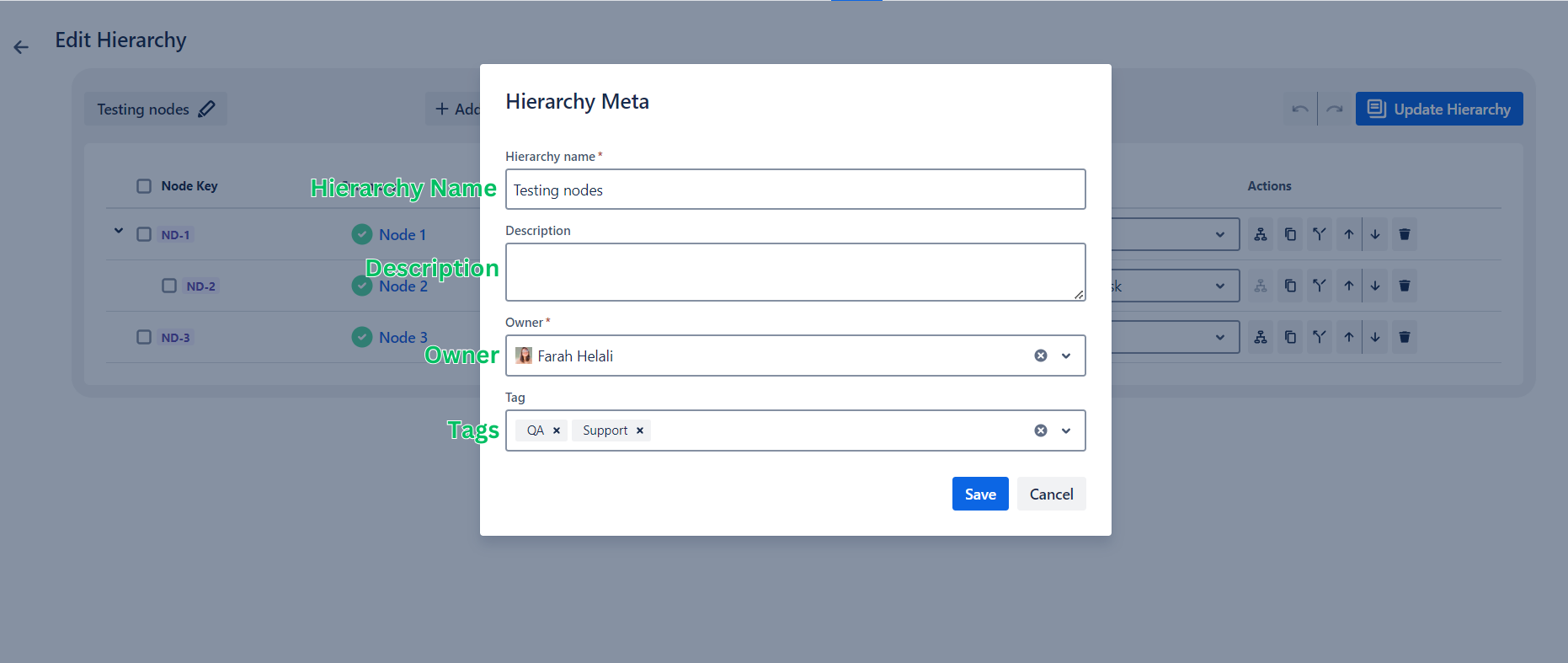

Hierarchy Meta
Hierarchy Meta dialog is designed for the:
-
Editing Hierarchy name
-
Adding Hierarchy description
-
Changing owner (if you have available permissions for changing owner for the Hierarchy)
-
Categorizing Hierarchy by Tags
.png?cb=49c36f31c2a581f7f26b33b17dab2afb)
|
Field Name |
Description |
|---|---|
|
Hierarchy Name |
Name, up to 60 characters long |
|
Description |
Optionally add a description to explain the hierarchy’s purpose. |
|
Owner |
Ability to change Owner for the Hierarchy. It`s available if you have available permissions for changing Hierarchy owner |
|
Tags |
Add tags to categorize and organize hierarchies for easy filtering. |

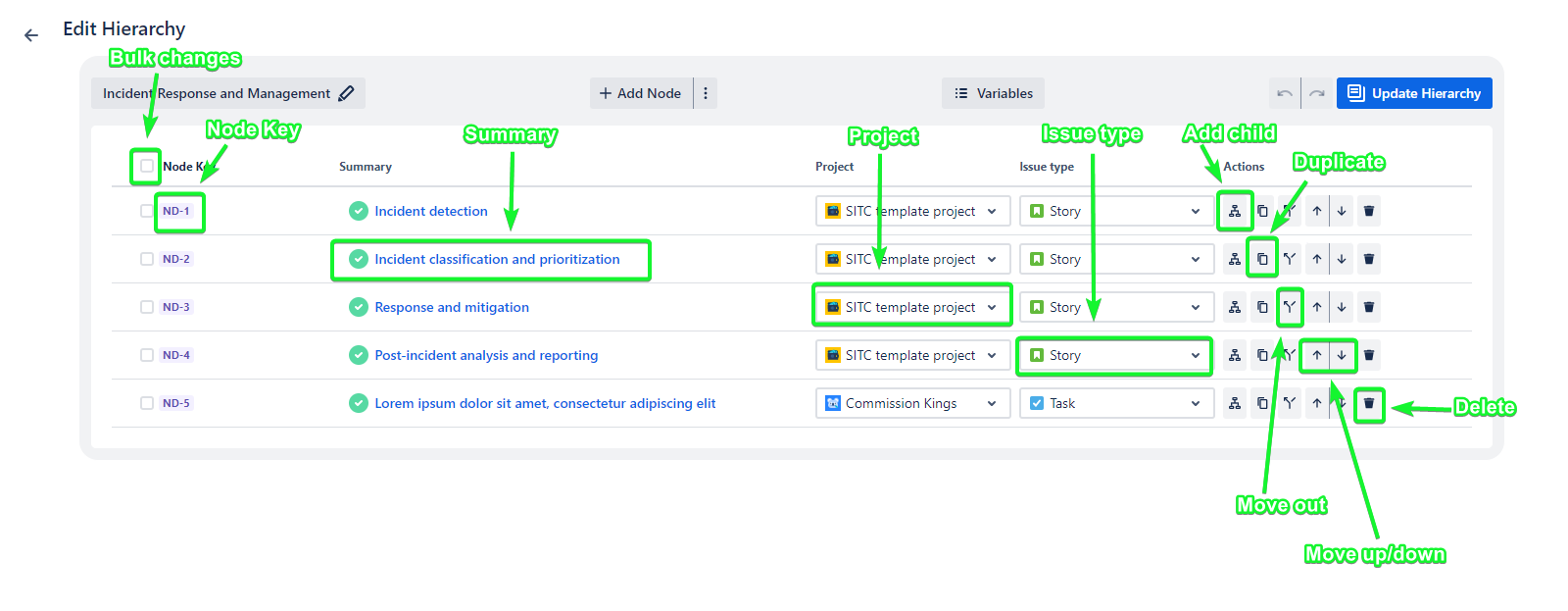

Hierarchy Nodes Management
You can easily move, duplicate, or bulk edit nodes within your hierarchy.
-
Use the action buttons next to each node to move, copy, or delete.
-
For bulk actions, select multiple nodes and apply changes all at once.
Column name
|
Description
|
|---|---|
|
Bulk changes |
Apply actions to multiple hierarchy nodes simultaneously. |
|
Node Key |
A unique identifier for each node, generated automatically by the add-on. |
|
Summary |
A brief summary or title for the issue represented by the node. |
|
Project |
The project in which the issue will be created. |
|
Issue Type |
The type of issue the node represents. Supports all custom hierarchy levels (e.g., Company, Initiative, Department, etc.). |
|
Assignee |
The person responsible for the issue associated with the node. |
|
Actions |
Description |
|
Add child |
Add a node under the current node. The child node will be positioned according to the hierarchy structure you’ve defined, maintaining the appropriate parent-child relationship within your custom setup. |
|
Duplicate |
Create an identical copy of the hierarchy node, including all its child nodes, if any. |
|
Move out |
Reassign the node to a different parent node within the hierarchy, while maintaining the integrity of your hierarchy structure. |
|
Move up/down |
Adjust the position of the node within its current hierarchy level. This allows for flexible reordering based on your project needs. |
|
Delete |
Remove the node from the hierarchy, which will also remove any associated child nodes. |
Validation Statuses
Validation status
|
Description
|
|---|---|
|
|
Newly created Node |
|
|
No field values have been specified for the Node |
|
All the required issue fields have been set |

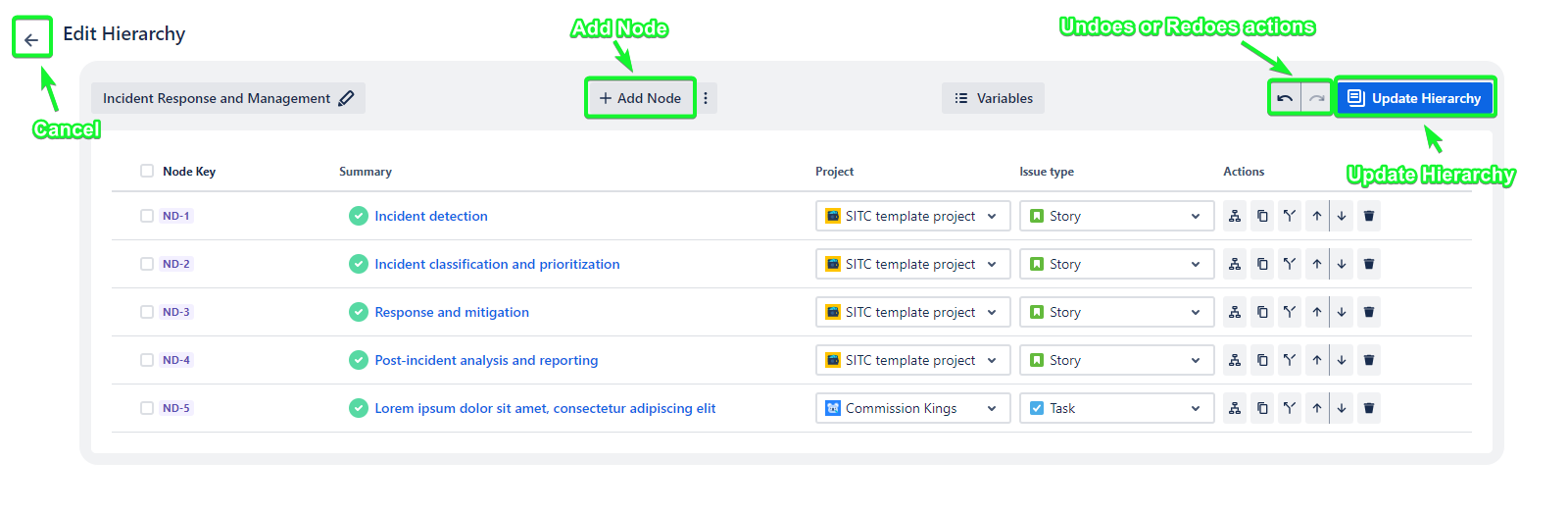

Action Buttons
|
Buttons |
Description |
|---|---|
|
Hierarchy |
|
|
Add Node |
Creates a Root Node for the new set of related issues |
|
Update Hierarchy |
Saves a Hierarchy that has been already validated |
|
Undoes or Redoes actions are taken with Hierarchy Nodes |
|
Node (edit mode) |
|
|
Add |
Save current Node settings |
|
|
Revert any changes done to the Node since the last save |
